VERTICAL LATHE VSC 850SCLoading...

front.common.in-stock VERTICAL LATHE VSC 850SC

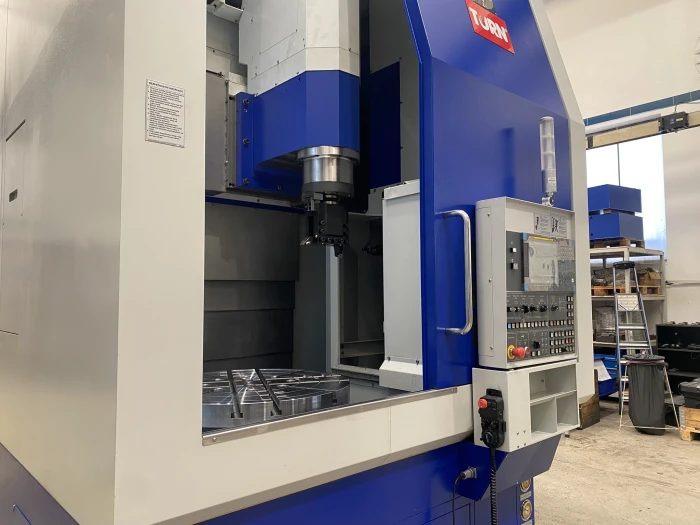

Vertical lathe with the designation VSC 850SC. FANUC control system.

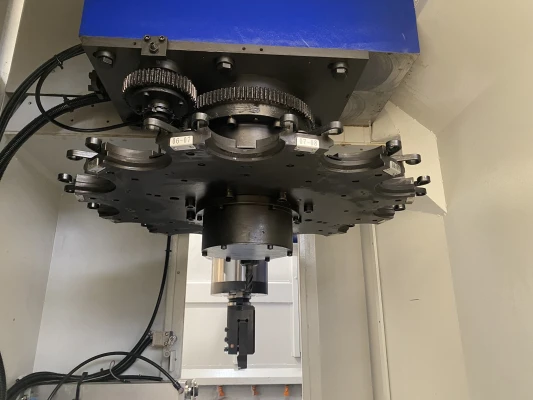

Selected equipment: full cover, 12-position magazine outside the working area, cooling through the tool center, linear measurement in the X and Z axes, sliding axis guidance, rotary tool drive 11/15 kW, two-speed gearbox of the main spindle and the rotary tool spindle.

Delivery date: taking into account the full production capacity at the end of 2025, the machine can be delivered at the beginning of 2026.

Price: taking into account possible additional equipment and services from 5,000,000 CZK. Payment terms: individual, a minimum deposit is required.

Warranty: 24 months with the possibility of extension, service start within 24 hours after reporting.

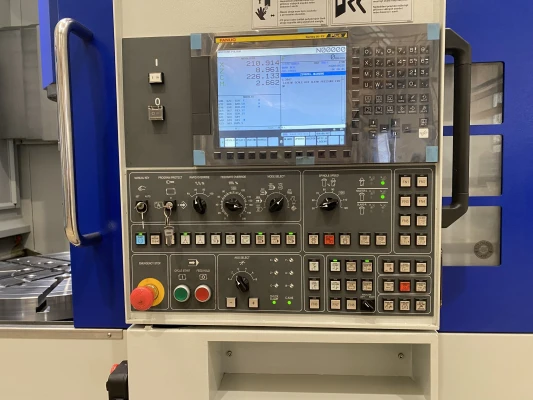

ControllerFANUC 0I-TF
Magazine possitions12
Tool clampingBT50
Workpiece clampingHydraulické sklíčidlo/ruční upínací deska
Table (chuck) diameter380 - 600 mm
Max. swing diameter850 mm
Max. workpiece height700 mm
Max. workpiece weight1300 kg
Max. main spindle RPM2000 rpm
Machine weight14000 kg
Main power18,5/22 kW (4195 Nm)
